DHBVN Solar Net Metering: Rules for Gurugram Residents

If you’re a resident of Gurugram, you already know that DHBVN (Dakshin Haryana Bijli Vitran Nigam) handles your power. You also likely know that electricity tariffs in Haryana for the top slab hit ₹7.1/unit once you cross 800 units a month. With 35+ years of electrical lineage, we’ve seen hundreds of homeowners in Millennium City struggle with the paperwork of net metering. The truth is, the hardware installation is the easy part—navigating the DHBVN solar connection and local Gurugram RWA solar guidelines is where most projects get stuck.

Technical Eligibility Under DHBVN

Before you buy a single panel, you need to know if your connection is legally eligible for net metering. Under the current Haryana solar policy, residential consumers can install solar up to their sanctioned load.

However, there’s a technical ceiling. DHBVN usually limits the total solar capacity on a local distribution transformer to 80% of its rated capacity. If your neighbors have already filled that quota, your application might be rejected or delayed. This is why we always recommend applying for the feasibility report early in the process.

For those in solar in Gurgaon, the connection type matters. If your sanctioned load is below 8 kW, you are likely on a single-phase connection. If you plan to install a 5 kW or 7 kW system, you can usually stay on single-phase, but once you cross the 8 kW threshold, DHBVN requires you to convert to a three-phase connection. This involves a separate "Load Enhancement" application, which we handle as part of our turnkey service.

Required Documents for DHBVN Solar Registration

The biggest hurdle for most residents is the paperwork. DHBVN has moved much of this online, but the verification process remains stringent. If your name on the electricity bill doesn't exactly match your Aadhaar or your property tax receipt, the portal will kick the application back.

We’ve noticed that in areas like South City Gurgaon, applications often stall because of "Mismatched Load." If your bill says 5 kW but you actually use 10 kW, you must apply for a load increase simultaneously. You can use our Solar Calculator to determine exactly how much capacity you need based on your current consumption slabs.

Navigating Gurugram RWA Solar Guidelines

If you live in a bungalow in DLF Phase 1-4, you have it easy. But for those in high-rise apartments or builder floors in Sushant Lok and Palam Vihar, the RWA is a major stakeholder.

Many RWAs in Gurugram have specific aesthetic or structural requirements. We often see guidelines that mandate:

1. Height Restrictions: Panels cannot exceed a certain height to avoid blocking views or violating "Pergola" definitions.
2. Access Rights: For builder floors, the roof is often shared. You need a No Objection Certificate (NOC) from other floor owners unless your sale deed clearly specifies exclusive roof rights.
3. Weight Limits: RWAs often worry about the structural integrity of the roof. As we've detailed in our guide on solar panel weight, a standard system is actually lighter than a full 1000L water tank, but you may still need a structural stability certificate to satisfy the board.

For apartment residents who don't have roof access, the Haryana solar policy now increasingly looks toward Community Solar and Virtual Net Metering as future solutions, though traditional rooftop net-metering remains the gold standard for ROI.

The Financials: Cost and Payback in Haryana

Unlike Delhi, where the state adds a top-up, the Haryana solar subsidy currently follows the PM Surya Ghar Muft Bijli Yojana structure provided by the MNRE.

• 1 kW to 2 kW: ₹30,000 to ₹60,000 subsidy.
• 3 kW and above: Capped at ₹78,000.

Real Example: A 5kW System in Sector 57, Gurugram

A family living in a 3-story builder floor with a monthly bill of ₹7,500 (averaging 900–1,000 units) installed a 5kW system.

• Gross Cost: ~₹3,43,035 (including GST and standard structure).
• Subsidy: ₹78,000.
• Net Investment: ₹2,65,035.
• Monthly Savings: They wiped out their bill, saving approx. ₹6,500/month.
• Payback Period: Under 3.5 years.

If they had chosen a cheaper, non-branded installation, they might have saved ₹20,000 upfront but would likely face inverter failures in year 4—a common trend we see in our AMC service fleet. We always recommend Tier-1 Topcon Mono PERC panels for the best yield in Gurugram’s dusty environment.

The Installation and Net Metering Process

© BRIDGEWAY POWER

Once your paperwork is in order, the physical installation takes 2–4 days. However, the DHBVN solar connection timeline looks like this:

1. Online Application: We submit your docs on the PM Surya Ghar portal.
2. Feasibility Approval: DHBVN Junior Engineer (JE) visits the site to check the transformer and sanctioned load.
3. Installation: We install the system as per MNRE standards.
4. Inspection & Green Meter: The JE inspects the wiring and earthing, then replaces your old meter with a bidirectional "Net Meter."
5. Subsidy Credit: Usually hits your bank account 30–60 days after the net meter is commissioned.

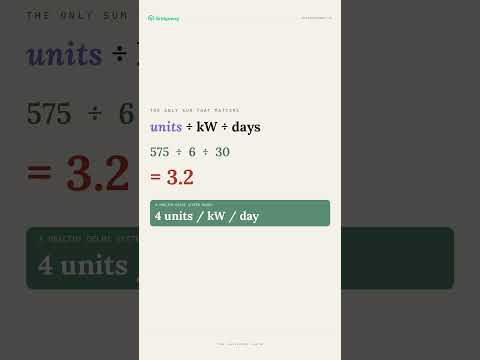

Is Your Solar System Underperforming? Check Your Electricity Bill in 30 Seconds

Why Solar in Gurugram is Different

Gurugram experiences extreme heat and significant dust. If you don't account for panel soiling loss, which can hit 25% in NCR, your ROI will stretch by years. We include two professional cleanings in the first year because we know that a dusty panel in Sector 14 is basically a very expensive piece of glass that doesn't produce power.

We also see many owners opting for elevated structures to keep their roof space usable for terrace gardens or sit-outs. While this adds about ₹15,000 per kW to the cost, it’s often a requirement for Gurugram RWA solar compliance.

If you're worried about the upfront cost, banks like SBI PM Surya Ghar Loan or PNB Solar Rooftop Scheme offer rates as low as 7% for systems up to 3kW. For larger systems, private partners like ECOFY Solar Financing or Aerem Solar Finance provide faster processing. Get a free quote to see which financing model fits your monthly budget.

FAQ

How much space do I need for a 5kW solar system in Gurugram?

You typically need about 400 to 500 square feet of shadow-free rooftop area. Since modern Topcon panels are high-efficiency (around 600Wp), we can often fit more power into smaller spaces than older systems could.

Does DHBVN pay me for the extra units I generate?

DHBVN uses an annual settlement cycle ending on March 31st. Any surplus units you generate are carried forward month-to-month to offset your bills. At the end of the financial year, if you still have a surplus, DHBVN pays you at the Average Power Purchase Cost (APPC) rate, which is significantly lower than the retail tariff.

Can I install solar on a rented builder floor in Gurgaon?

Yes, but you need a registered NOC from the property owner. The DHBVN solar connection will remain in the owner's name (as it must match the electricity bill), so you’ll need a legal agreement regarding the investment and the benefit of the reduced bills.

What is the maximum solar capacity I can install under DHBVN?

You can install up to 100% of your sanctioned load. If your bill shows a sanctioned load of 10 kW, you can install a 10 kW solar plant. If you want more, you must first apply for a load enhancement with DHBVN and pay the associated security deposits.

Do I need a separate meter for solar?

Yes, DHBVN will replace your existing meter with a "Net Meter." This bidirectional device tracks both the energy you take from the grid and the excess solar energy you feed back into it. You can learn how to read these meters here.

The most important thing to remember is that a solar system is a 25-year asset. Cutting corners on the DHBVN application or choosing a fly-by-night installer to save a few thousand rupees usually leads to the "orphaned system" problem where no one is available to fix a tripped inverter three years down the line. We've been here since 1990, and we aren't going anywhere.

Ensure your roof is ready for a site survey before the next summer peak hits. 1500–2000 units of generation in the summer months can be the difference between a ₹15,000 bill and a zero-rupee bill. | SEO Title: DHBVN Solar Net Metering: Rules & Guide (Gurugram 2026) | SEO Description: Learn DHBVN solar net metering rules for Gurugram. Technical eligibility, documentation for solar load extension & RWA guidelines. Free consultation available. | Slug: dhbvn-solar-net-metering-rules-gurugram | Target Keyword: dhbvn | Excerpt: Navigating DHBVN solar net metering in Gurugram? Learn about technical eligibility, load extension paperwork, and RWA guidelines for a smooth rooftop solar installation. | title: DHBVN Solar Net Metering: Rules for Gurugram Residents
