    Solar Structure Guide

    Solar Panel Structure Design in India

    7 mounting types compared — with real ₹/kW pricing, wind load ratings, dimensions and best-fit use cases for every Indian roof.

    Every Roof Is Different. So Is the Structure.

    Flat RCC concrete rooftop solar installation with ballast-mounted panels on an Indian home

    RCC Rooftop

    Flat concrete roofs (most common)

    ₹3,000–5,000/kW
    Up to 150 km/h
    Tilt: Fixed (15–25°)
    • Cheapest option
    • No drilling
    • Works on most homes

    Area needed:

    3 kW: 200 sq ft5 kW: 350 sq ft10 kW: 650 sq ft

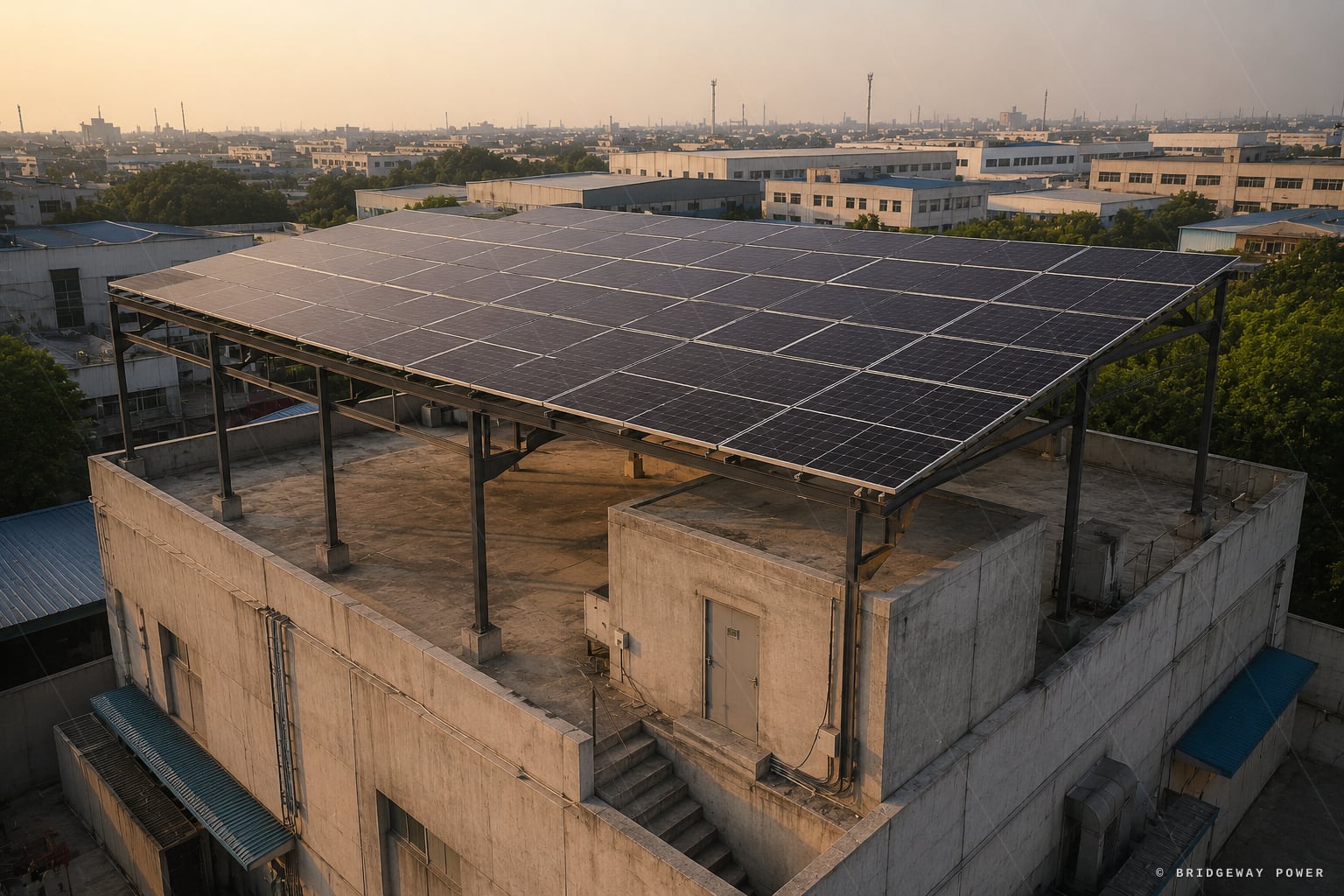

    Elevated solar mounting structure raised on steel legs above a rooftop water tank in India

    Elevated / Raised

    Rooftops with water tanks, AC units, or low headroom

    ₹6,000–10,000/kW
    Up to 130 km/h
    Tilt: Fixed (15–25°)
    • Usable space underneath
    • Better airflow = cooler panels
    • Clear shadow obstacles

    Area needed:

    3 kW: 200 sq ft + 7ft height5 kW: 350 sq ft + 7ft height10 kW: 650 sq ft + 7ft height

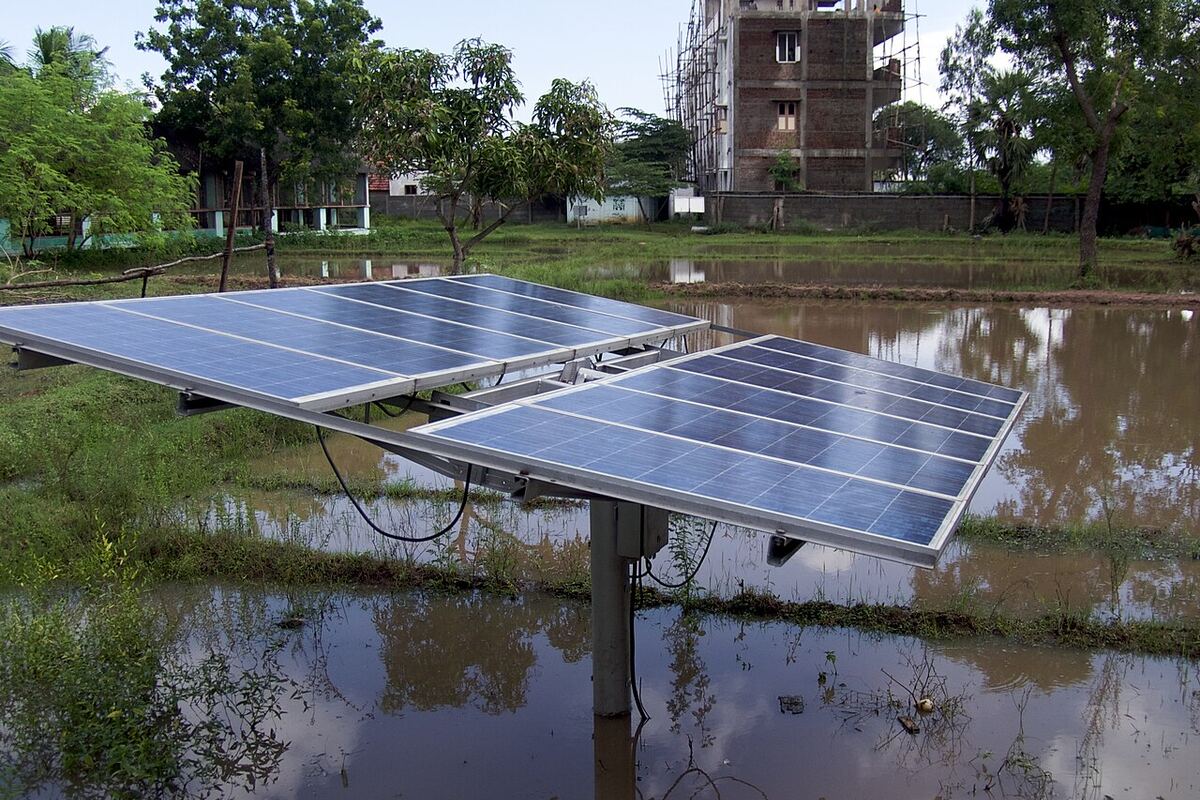

    Ground-mounted solar panel array on open farmland in rural India

    Ground-Mount

    Open land, farmhouses, commercial plots

    ₹8,000–14,000/kW
    Up to 170 km/h
    Tilt: Fixed or seasonal adjustable
    • No roof dependency
    • Easy maintenance
    • Best for large systems (50 kW+)

    Area needed:

    3 kW: 250 sq ft5 kW: 400 sq ft10 kW: 800 sq ft

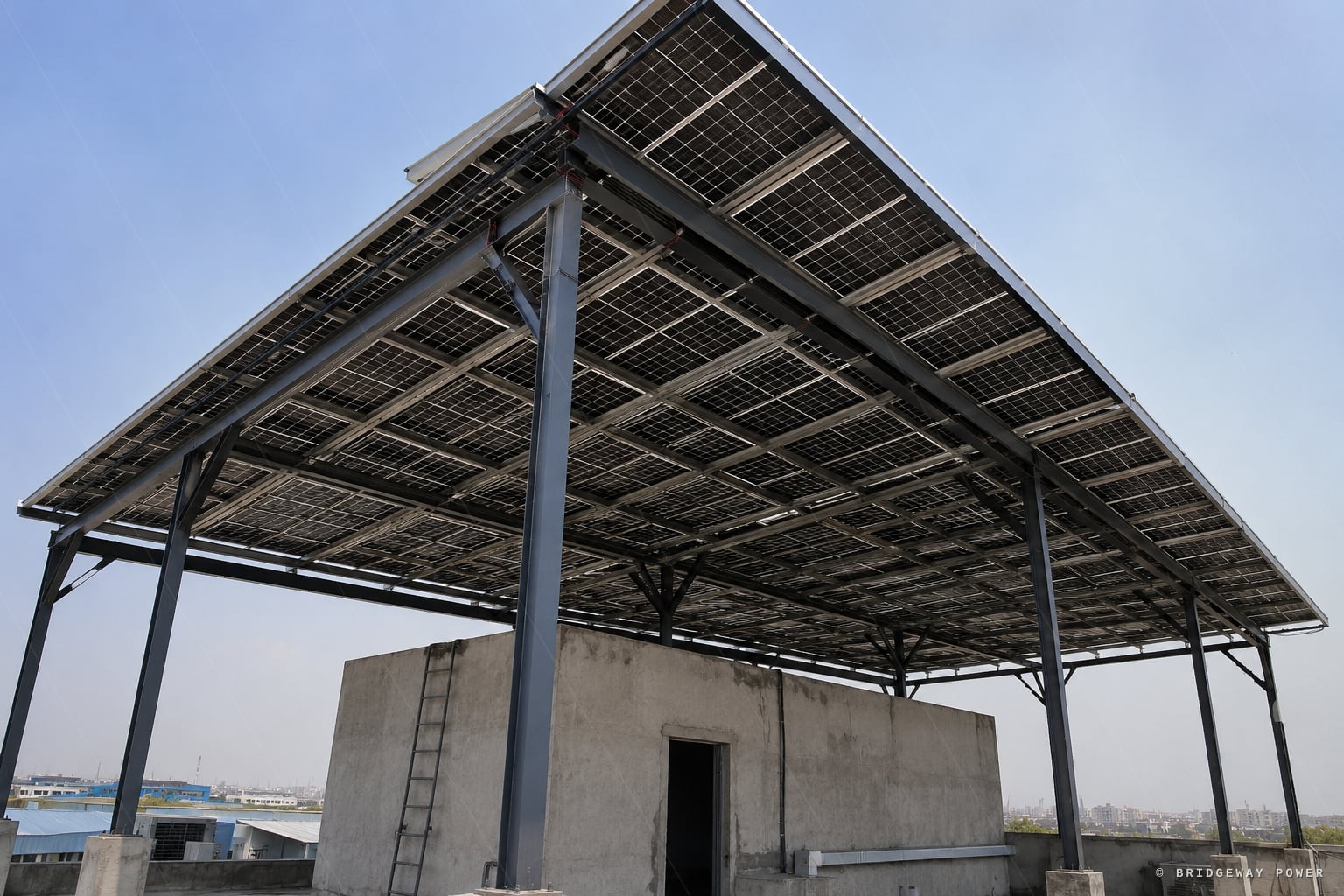

    Solar pergola structure providing shade and rooftop power generation in India

    Shed / Pergola

    Parking lots, terraces, gardens

    ₹10,000–18,000/kW
    Up to 140 km/h
    Tilt: Integrated roof angle
    • Dual purpose: shade + power
    • Premium aesthetics
    • Great for commercial

    Area needed:

    3 kW: 300 sq ft shade area5 kW: 500 sq ft shade area10 kW: 1,000 sq ft shade area
    Solar panels rail-clamped to a corrugated metal warehouse roof in India

    Tin / Metal Roof

    Industrial sheds, warehouses, factories

    ₹3,500–6,000/kW
    Up to 120 km/h
    Tilt: Follows roof slope
    • No extra tilt structure
    • Lightweight
    • Fast installation

    Area needed:

    3 kW: 200 sq ft5 kW: 350 sq ft10 kW: 650 sq ft
    Railing-mounted balcony solar panel installation on an Indian apartment building

    Railing / Balcony Mount

    Apartments, balconies, small rooftops

    ₹5,000–8,000/kW
    Up to 100 km/h
    Tilt: 30–60° (wall-angled)
    • No roof access needed
    • Plug-and-play friendly
    • Apartment-compatible

    Area needed:

    1 kW: 6ft railing span2 kW: 12ft railing span
    Utility-scale single-axis tracking solar array at an Indian solar power plant

    Tracking System

    Large commercial/utility — max generation

    ₹15,000–25,000/kW
    Up to 160 km/h (stow mode)
    Tilt: Single or dual-axis tracking
    • 25–40% more generation
    • Best ROI for large installs
    • Automated

    Area needed:

    10 kW: 900 sq ft50 kW: 4,500 sq ft
